Description
Looking for the Bambu version? Go here.
Welcome to the next generation of 3D printer air filtration presented by Nevermore 3D, pioneers in open-source community 3D printer filtration since 2019. We’re proud to announce our latest design, the Nevermore Mini, designed to redefine efficiency and airflow in the realm of compact 3D printer filtering, and that will hopefully fit any machine!
The USB-C right angle cable for the touchscreen is black-green-white-red, with black being the white striped wire.
The touchscreen comes pre-flashed with the latest firmware.
The 4028 kit comes 95% done for wiring, and 100% done for soldering.
Kits are for 1515/2020 extrusions or magnetic mount only!
All kits come with a 6 month DOA warranty.
Does NOT include printed parts.
Contact us if you would like us to print the parts for you.
A USB-C cable is required to power the smart kit. You must source the length you need for your printer. USB A to C is recommended if connecting to the Raspberry PI.
Assembly guide is available here. It is the Bambu version but the wiring is mostly the same.
5020 basic kit BOM (24v Input):
| Description |
Quantity |
| GDSTime 5020 24v Dual Ball Blower Fan |
1 |
| Nevermore Mini / StealthMax S HEPA Filter |
1 |
| Magnets 6mm x 3mm N35 |
9 |
| M3x6mm BHCS |
4 |
| M3x6mm SHCS |
6 |
| M3x8mm SHCS |
2 |
| M3x30mm SHCS |
1 |
| 1515 M3 T-Nut |
2 |
| 2020 M3 T-Nut |
2 |
| Metal Adhesive Sticker 40mm |
1 |
| M3xD5xL4 Voron Spec Heat Set Inserts |
14 |
| 2-Pin Micro-Fit Connector Pair |
1 |
| 26 AWG PTFE Wire 20cm Black+Red Pair |
1 |
| WAGO 2-Port |
2 |

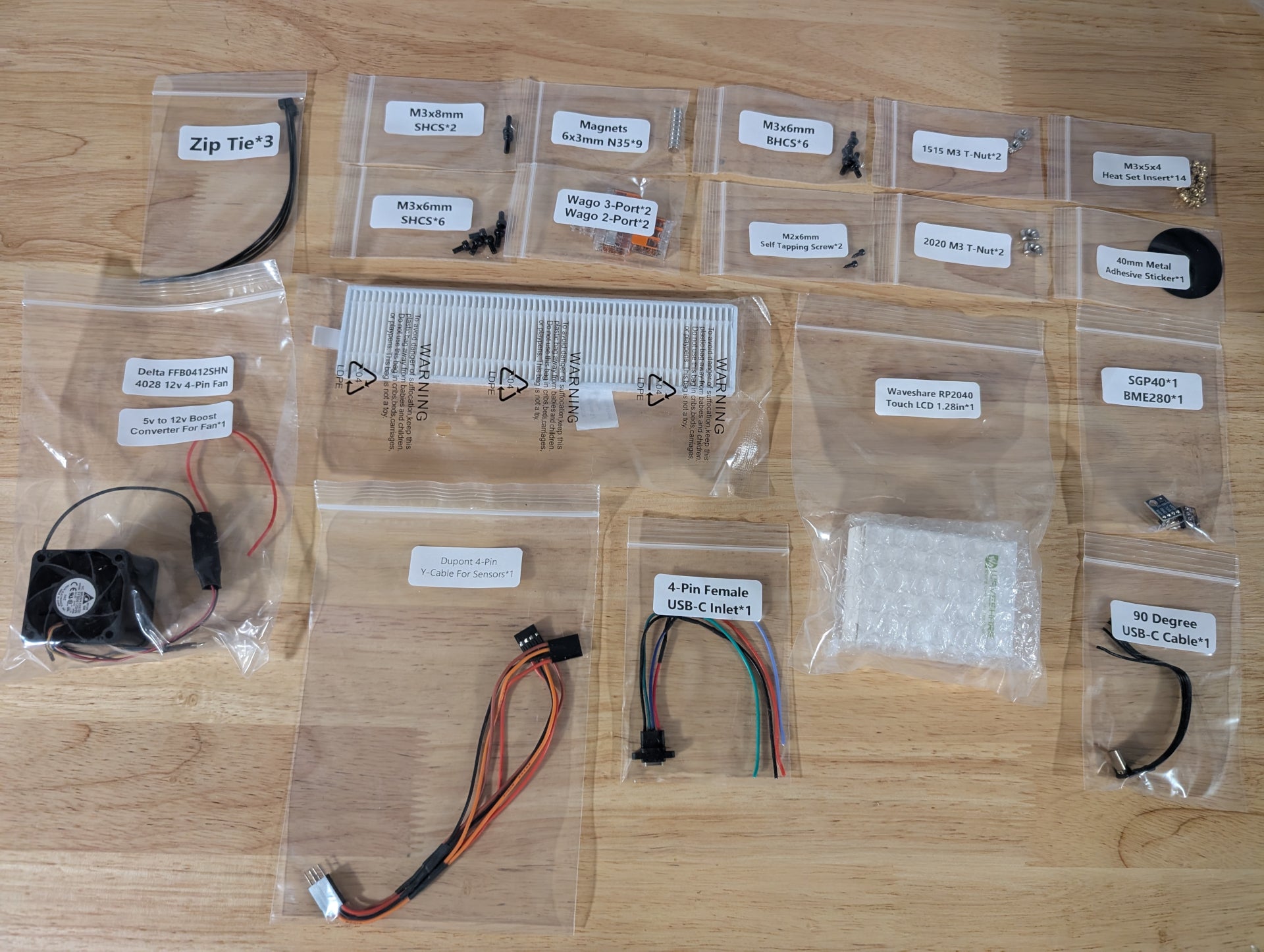

4028 smart kit BOM (5v Input):
| Delta FFB0412SHN 4028 12v 4-Pin Fan |
1 |
| Nevermore Mini / StealthMax S HEPA Filter | 1 |
| Magnets 6mm x 3mm N35 | 9 |
| M2x6mm Self Tapping Screws |
2 |
| M3x6mm BHCS |
6 |
| M3x6mm SHCS |
6 |
| M3x8mm SHCS |
2 |
| 1515 M3 T-Nut |
2 |
| 2020 M3 T-Nut |
2 |
| Metal Adhesive Sticker 40mm |
1 |
| M3xD5xL4 Voron Spec Heat Set Inserts |
14 |
| SGP40 |
1 |
| BME280 |
1 |
| Waveshare RP2040 Touch LCD 1.28in | 1 |
| 90 Degree USB C Cable For PI Power |
1 |
| 4-Pin Female USB C Connector For Mini Input |
1 |
| WAGO 2-Port | 2 |
| WAGO 3-Port |
2 |
| 5v to 12v Boost Converter For Fan Power |
1 |
| Zip Ties |
3 |
| Custom Wiring Harness For Sensors | 1 |

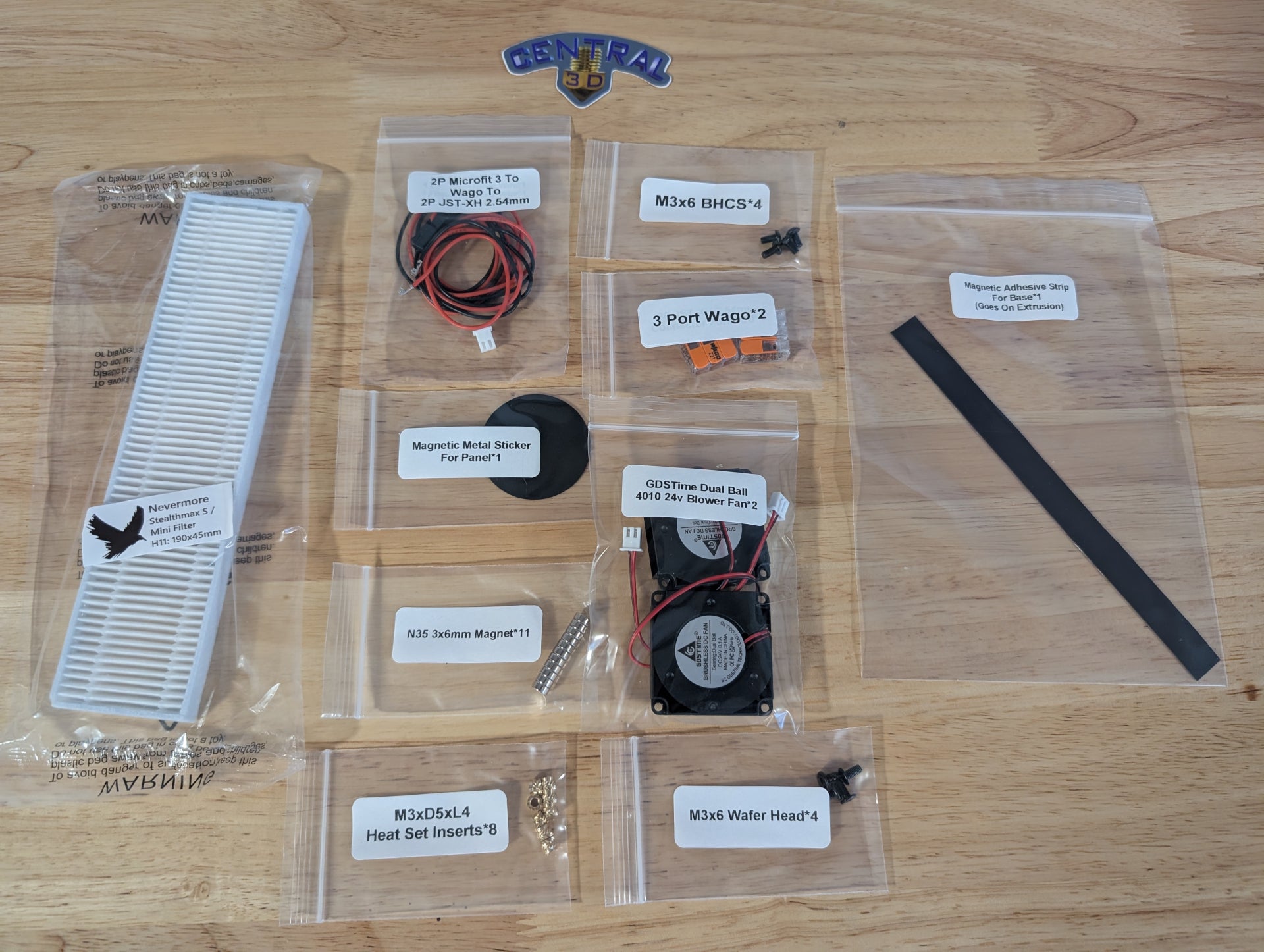

4010 Basic Kit V0 BOM (24v Input):
| GDSTime 4010 24v Dual Ball Blower Fan | 2 |
| Nevermore Mini / StealthMax S HEPA Filter | 1 |
| Magnets 6mm x 3mm N35 | 11 |
| M3x6mm BHCS | 4 |
| M3x6mm Wafer Head | 4 |
| Metal Adhesive Sticker 40mm | 1 |
| M3xD5xL4 Voron Spec Heat Set Inserts | 8 |
| 2-Pin Micro-Fit Connector Pair | 1 |
| 2-Pin JST-XH 2.54mm Male Connector | 1 |
| Pre-Cut and Terminated 26 AWG Silicone Wire Red+Black | 1 |
| WAGO 3-Port | 2 |
| Magnetic Adhesive Strip | 1 |
You may also like
Recently viewed
Customer Reviews

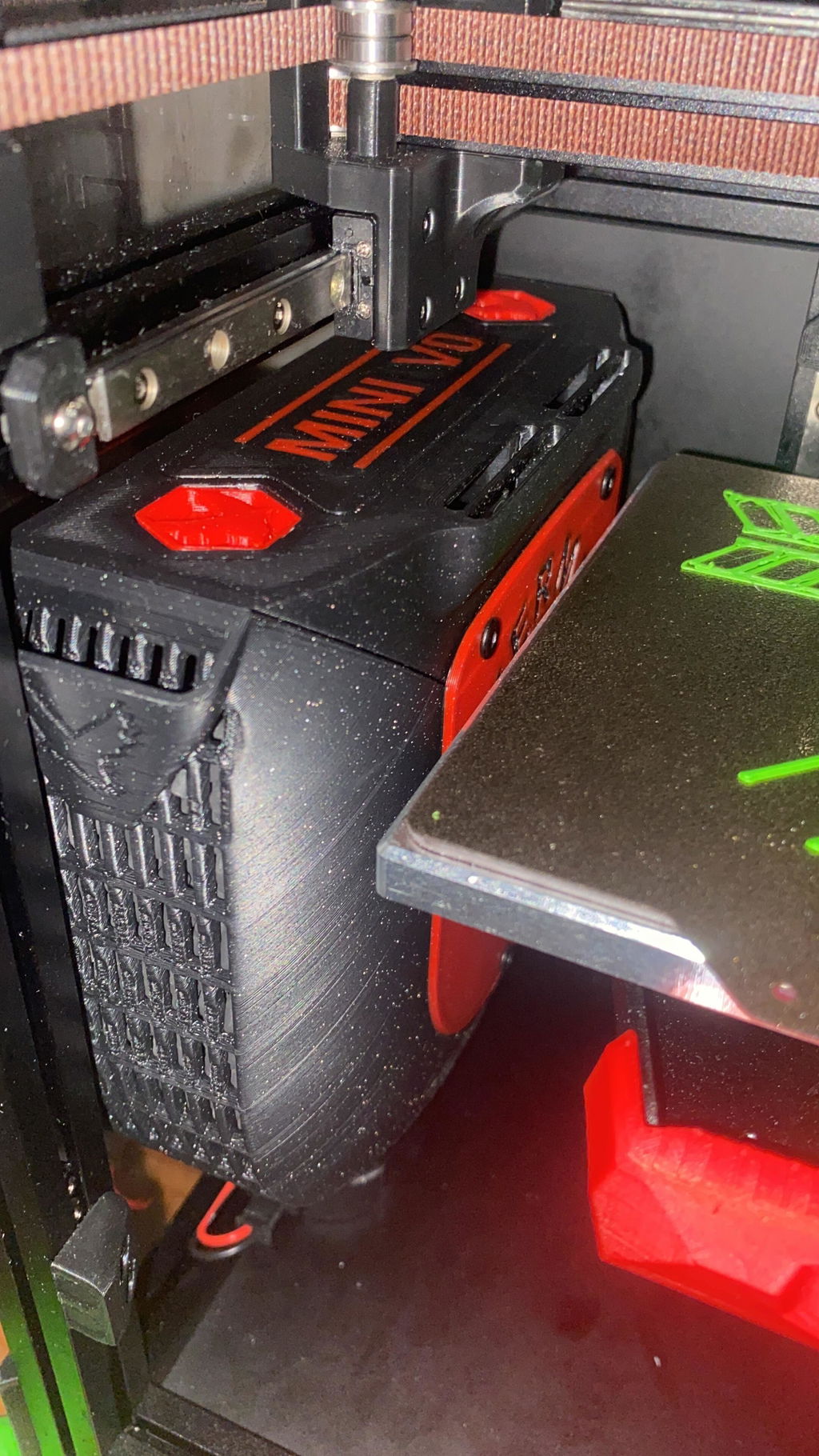

Works like a charm in my stock v0 printing ABS. 10/10 would buy again!
